Product Description:

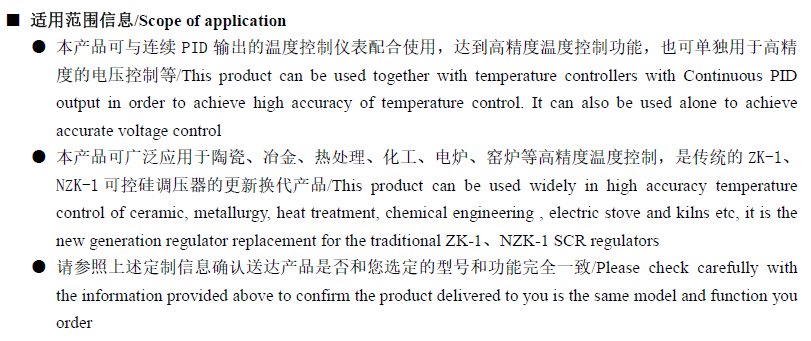

ZKC1 Intelligent Digital Power Regulator is using advanced single-chip design, it is the new generation regulator providing control solution for power-conversion application by using SCR to control the sine wave. This product can be used together with temperature controllers with Continuous PID output in order to achieve high accuracy of temperature control. It can also be used alone to achieve accurate voltage control.
This product can be used widely in high accuracy temperature control of ceramic, metallurgy, heat treatment, chemical engineering , electric stove and kilns etc, it is the new generation regulator replacement for the traditional ZK-1,NZK-1 SCR regulators.
Features:
- Power frequency 50/60 Hz auto-detect
- Zero cross control or phase angle control selectable
- High and low output limit settable
- Soft start or kick start time settable
- Multi-input type optional
- Auto output or manual output selectable
- Multi automatic diagnostic alarm function
Application:
