★ Before using this product, please read the instructions carefully for proper use and keep them for reference at any time.

▶Operation Precautions◀

1、The instrument can be cleaned after power off.

2、Remove stains on the monitor with a soft cloth or tissue paper.

3、Monitor is easy to be scratched, do not wipe or touch with hard objects.

4、Do not use an object such as a screwdriver or writing pen to operate the keys on the panel; otherwise, the keys may be damaged or scratched.

ONE、Main technical indicators

 The test object of XMTA-AC100 ammeter is 45 ~ 65Hz AC current signal, and the product meets the requirements《DB37/T557-2005 The specific technical indexes of digital electric parameter measuring (testing) 》instrument are as follows.

1、Working power supply：AC220V±10%,50/60Hz

2、The measured parameters : Ac current, maximum range 5A

3、The basic error:  4%Apparent value + 1%range

4、resolving power ：0.001A

5、Allow overload :120%×Maximum range

6、Accuracy of measurement：0.5 Level

7、The update frequency：About 3Hz

8、The machine power consumption:< 4W

9、Overall dimensions:80(H)×160(W)×94(D)

10、The weight: About 500g

11、The work environment:environment temperature 0~50°C,atmospheric pressure 86~106kPa、relative humidity ：20~90%RH

Note: the above indicators are common product indicators, customized products are subject to the customer order contract.

TWO、Optional extension functions (customized according to customer requirements)

1、Serial communication: Isolation of RS485

2、Relay output：Output contact capacity of relay is 5A/30VDC or 5A/250VAC

3、Analog output：0~20mA、4~20mA,0~5VDC、1~5VDC、0~10VDC、1~10VDC, Analog input impedance≤800Ω

THREE、Description of panel layout and wiring terminal diagram

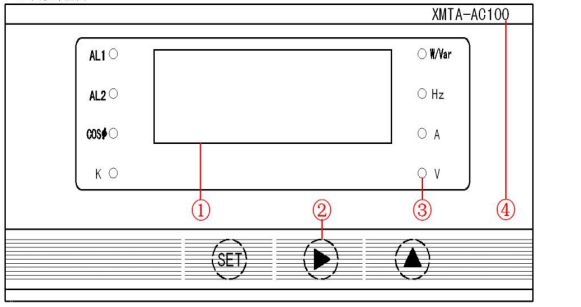

1、Panel layout
