Summary:

TP series digital display timer is a new generation of preset timer launched by our company. TP series digital display timer adopts single chip microcomputer with excellent performance as the main control part, featuring high precision, wide timing range, multiple timing working modes (6 kinds), digital display, clear keyboard operation, permanent storage of preset data in power outage, strong anti-interference performance,beautiful appearance and other characteristics.

Specifications:

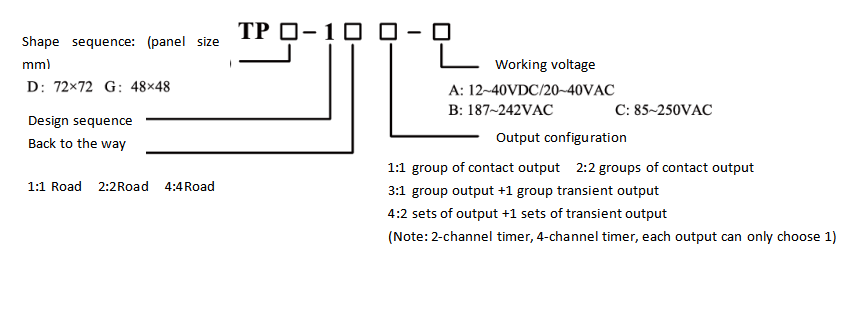

Model	Output configuration	Overall dimensions (mm)H×W×L	The size of hole(mm)H×W×L	Insert depth mm
TPD-1££	Group 1, group 2 optional (with instantaneous)	72×72×75	68×68	65
TPG-1££	Group 1 (with instantaneous), group 2 optional	48×48×86	45×45	78

Spectrum:

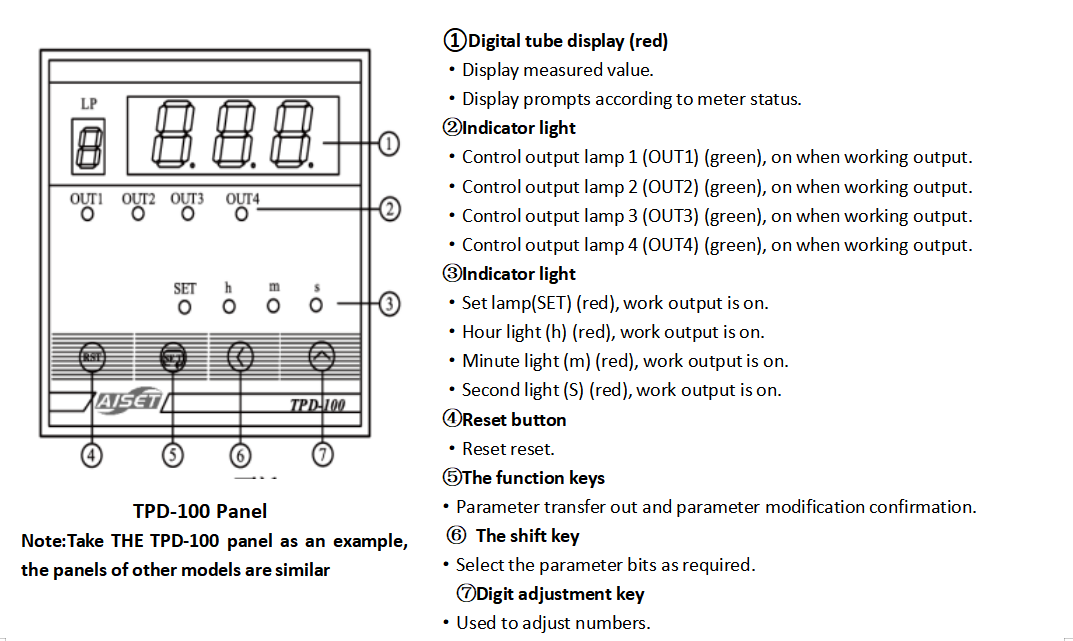

Control panel：

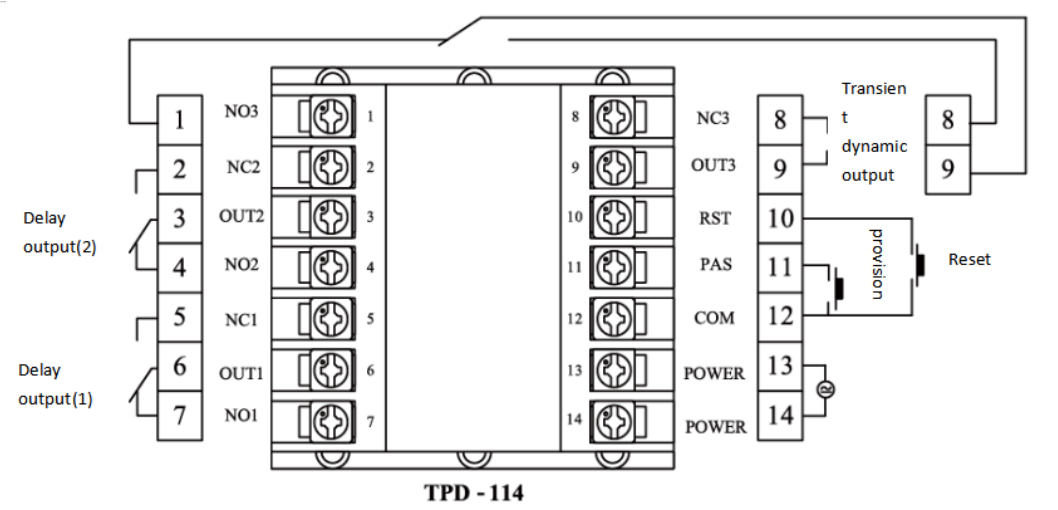

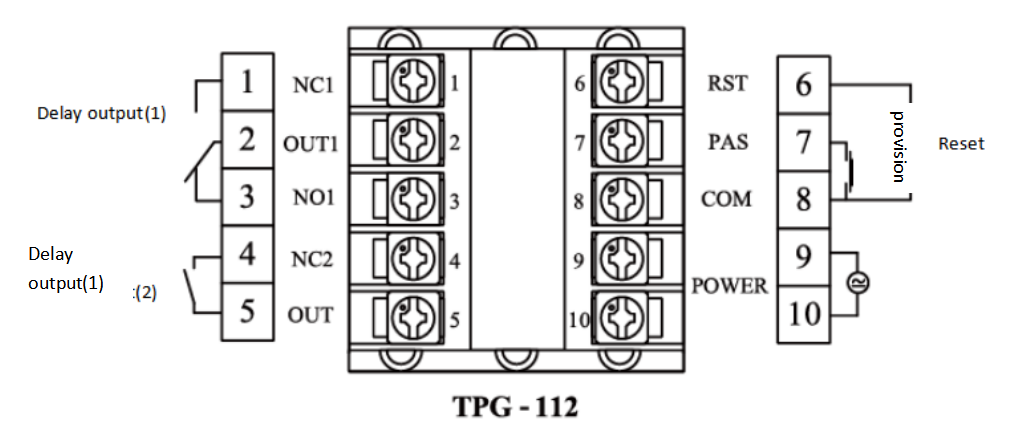

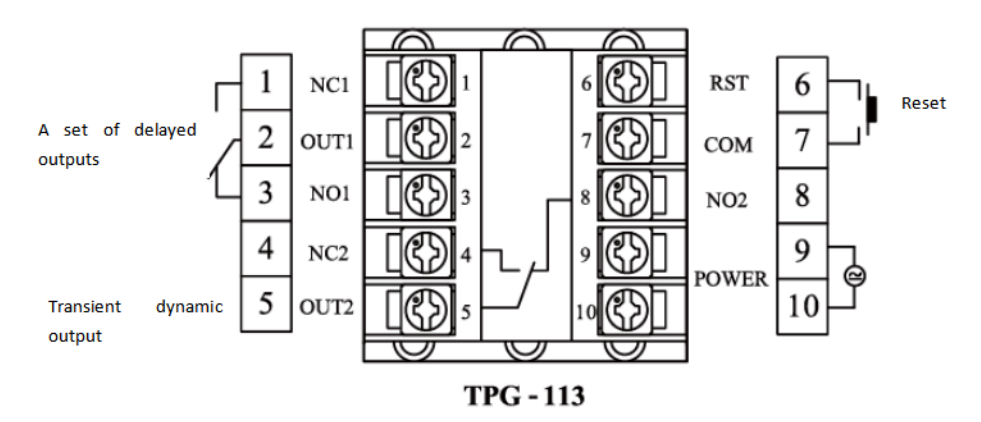

Terminal:

Delay output Timed work output
Code	Delay rangeDelay range	0 model	Delayed pull in(T1 timing )
0	0.01~99.99s	1 model	Delayed release (T2 timing)
1	0.1~99.99s	2 model	Delayed T1 pull in,Release after T2 delay, end
2	0~9999s	3 model	Release after T1 delay, Delayed T2 pull in,end
3	0.01~99.99m	4 model	Delayed T1 pull in,Release after T2 delay,,Repeated cycle
4	0.1~99.99m	5 model	Release after T1 delay, Delayed T2 pull in, Repeated cycle
5	0~9999m
6	0.01~99.99h
7	0.1~999.9h
8	0~9999h

Outage output configuration	Group 1, group 2, with transient function (to be determined when ordering)	Maximum output contact current	3A/250VAC(Impedance load)
Timing resolution	10ms	Terminal to suspend(PAS 、COM PS-ON)	Pause signal pulse width ≥20ms NPN contactless signal(0V≤VL<1V,2.5≤VH≤5V)
Timing accuracy	±0.3%+50ms	Terminal to suspend(PAS 、COM PS-ON)
Temporary way	The counter display value remains unchanged during pause	Ambient temperature and humidity	0-50°C
Set parameter timing value power-off code protection time	≥10 years	Relative humidity	≤95%（No condensation）
Reset ( zero clearing) mode	Reset display value, control output reset （1）Reset panel zero key (only in timing state) （2）Terminal reset（PST、COM PS-ON)；Reset signal pulse width≥20ms；NPN contactless signal 0V≤VL<1V,2.5≤VH≤5V) （3）Power-off reset interval≥0.5s
Key to set software lock：Parameters, set values can be modified, not modified or partially modified

Can be widely used in packaging, printing, pharmaceutical, food, textile, papermaking, ceramics, petroleum, chemical, metallurgy and other industries delay, timing time display and control, and can achieve cyclic control output, to meet the needs of a variety of time control occasions, put on the market by users welcome.
