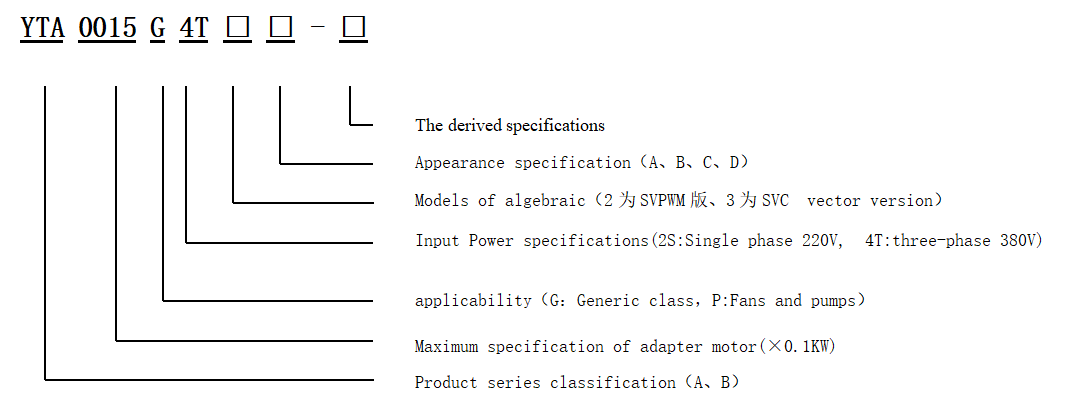

Model Description:
Among them:
（1）Product series classification：YTA series、YTB series
（2）Maximum specification of adapter motor（×100W）：0004=400W，0015=1.5KW，0110=11KW，0300=30KW；
（3）applicability：G--universal、P--Fans and pumps（Light load type）、Z--Overloading,
（4）Input Power specifications：2S--Single phase220V， 4T--three-phase380V；
（5）Model Algebra: model revision and upgrade code (2-svpwm space voltage vector version, 3-svc vector version)
（6）Appearance specifications：A—Plastic shell guide rail horizontal Mini，B—Plastic shell horizontal type，C—Sheet metal shell horizontal wall hanging，D—Sheet metal shell cabinet type， M-Top in and bottom out bedroom Mini.
（7）Derived specification: partial improvement or special specification,1、2、3…
Technical provisions for several specifications:
1、Universal（G）：The allowed overload capacity is150%Ie/60S，180%Ie/2S；
2、Fans and pumps（P）：The allowed overload capacity is120%Ie/60S，150%Ie/2S；
3、Overloading type（Z）：The allowed overload capacity is180%Ie/30S，200%Ie/2S；

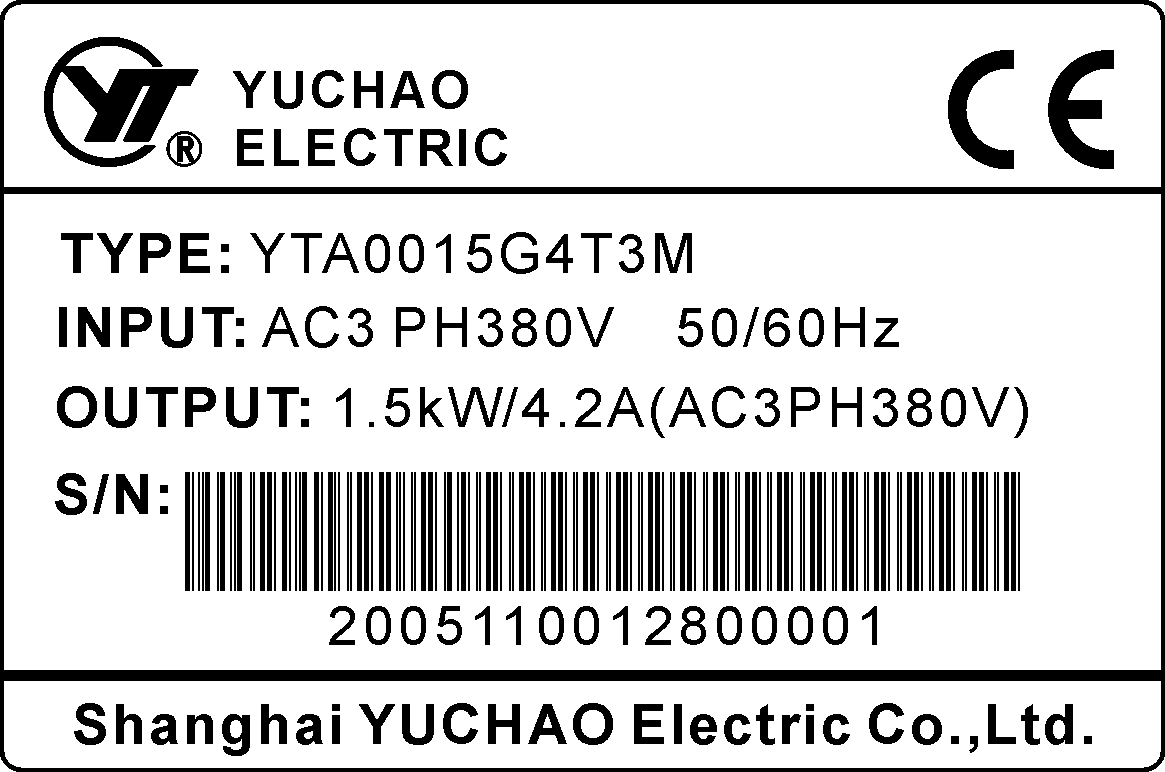

Nameplate instructions（Take the three-phase input 1.5kW inverter as an example）
Product standard specifications
Table 1 General product specifications
Model | Input voltage (V) ） | Power (KW) | Frequency converter output capacity | Output current (A) | Maximum adaptive motor (KW) | contour specifications |
YTA0007G2S3M | 1Φ220V | 0.75 | 2.0 | 5.0 | 0.75 | MA |
YTB0007G2S3M
| MB | |||||
YTA0007G2S3B | B1 | |||||
YTA0015G2S3M | 1Φ220V | 0.75 | 3.0 | 7.0 | 1.5 | MA |
YTB0015G2S3M
| MB | |||||
YTA0015G2S3B | B1 | |||||
YTB0022G2S3M | 1Φ220V | 0.75 | 4.2 | 10.0 | 2.2 | MB |
YTA0022G2S3B | B1 | |||||
YTB0022Z2S3B | B3 | |||||
YTB0037G2S3B | 1Φ220V | 3.7 | 6.5 | 17 | 3.7 | B3 |
YTA0007G4T2A | 3Φ380V | 0.75 | 2.0 | 2.5 | 0.75 | A1 |
YTB0007G4T3M | MB | |||||
YTA0007G4T3B | B1 | |||||
YTA0015G4T2A | 3Φ380V | 1.5 | 3.0 | 4.2 | 1.5 | A1 |
YTB0015G4T3M | MB | |||||
YTA0015G4T3B
| B1 | |||||
YTB0022G4T3M | 3Φ380V | 2.2 | 4.2 | 5.5 | 2.2 | MB |
YTA0022G4T3B | B1 | |||||
YTB0022Z4T3B | B3 | |||||
YTB0037G4T3M | 3Φ380V | 3.7 | 6.5 | 8.5 | 3.7 | MB |
YTA0037G4T3B | B3 | |||||
YTB0037G4T3B | ||||||
YTA0055G4T3B | 3Φ380V | 5.5 | 10 | 13.0 | 5.5 | B3 |
YTB0055G4T3B | ||||||
YTA0075G4T3B | 3Φ380V | 7.5 | 14 | 18 | 7.5 | |
YTB0075G4T3B | ||||||
YTA0110G4T3B | 3Φ380V | 11 | 18.5 | 24 | 11 | B4 |
YTA0150G4T3B | 3Φ380V | 15 | 24.5 | 32 | 15 | |
YTA0185G4T3C | 3Φ380V | 18.5 | 29 | 38 | 18.5 | C1 |
YTA0220G4T3C | 3Φ380V | 22 | 35 | 45 | 22 | |
YTA0300G4T3C | 3Φ380V | 30 | 46 | 60 | 30 | C2 |
YTA0370G4T3C | 3Φ380V | 37 | 57 | 75 | 37 |
Note: The appearance specifications of M-type are divided into MA and MB, which are different from random standard external guide boxes, a-type and B-type external guide boxes respectively.
Installation site and environment
● Installation in indoor, well-ventilated places, generally should be vertical installation;
● The ambient temperature is required to be within the range of - 10 ~ 40 ℃. If the temperature exceeds 40 ℃ (but ≤ 50 ℃), it shall be reduced for use;
● The relative humidity shall be lower than 90% and there shall be no condensation of water droplets;
● It should be installed in places with vibration less than 0.5g and altitude below 1000 meters
(Derating over 1000 meters);
● Avoid installation in places with dust, metal and other conductive powder;
● It is strictly prohibited to install in places with corrosive and explosive gas.
● The installation interval and distance requirements are shown in Figure 1.Note: the environmental conditions of the installation site are good or bad,it will affect the operation and service life of the frequency converter.
