Product introduction
Type plate and nameplate
Picture 2-1 Product model example

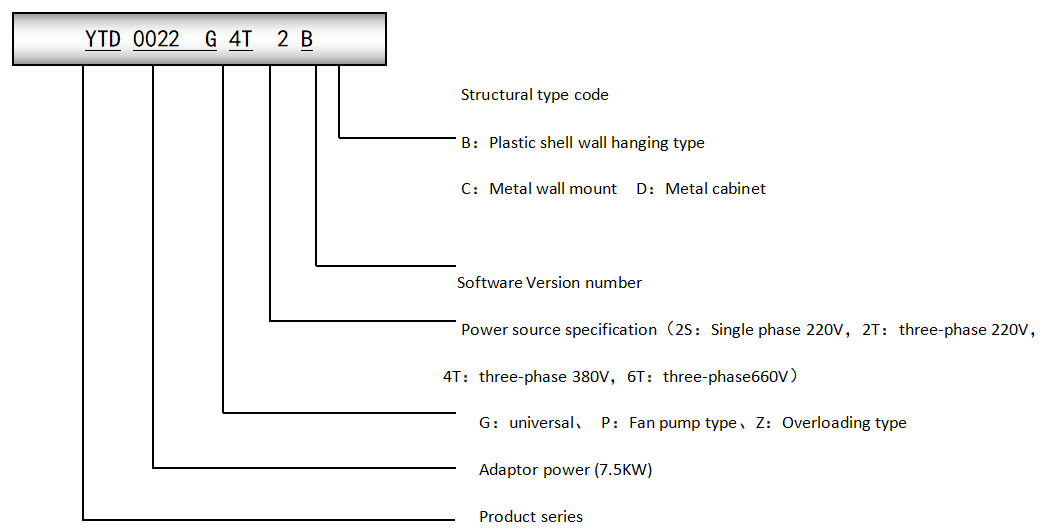

The product model meaning is(Take three-phase 2.2KW inverter with built-in brake unit as an example)
Picture 2-1 Product model example

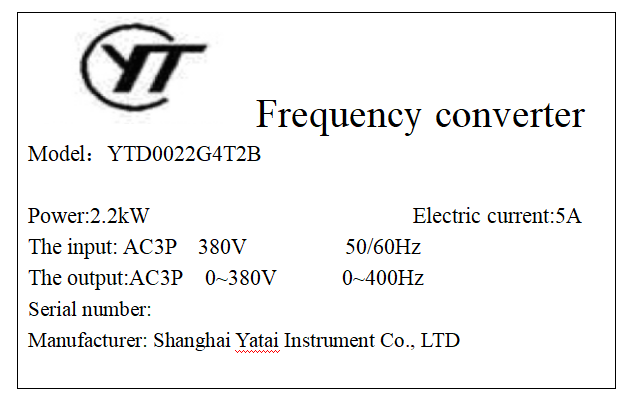

The nameplate of YTD-G series frequency converter is shown in Figure 2-2 (take three-phase input, 2.2kW frequency converter as an example)
Picture 2-2 Nameplate
Note:
·2.2KW、5A Indicates the rated power and current of the converter.
·AC indicates the AC power input.
·3P、380V、50/60Hz Represents three-phase input, rated input voltage, and frequency.
·3P、0~380V、0~400.0Hz Represents three-phase output, frequency converter output voltage range and output frequency range.
Product-----See table
The power range of YTD-G series frequency converters is 0.4~630KW. The main information materials are shown in Table 2-1；
The external dimensions and installation dimensions of the inverter are shown in the manual in Table 3-2.
Table 2-1 List of YTD-G products
Model | Rated input voltage | Rated output current | Structure of the code | Adaptation motor | Note |
YTD0004G2S2B/YTD0007P2S2B | ~220(Single phase) | 2.3/4.5 | B1 | 0.4/0.75 | Three-phase frequency converter (with built-in braking unit, without built-in DC reactor unit) |
YTD0007G2S2B/YTD0015P2S2B | ~220(Single phase) | 4.5/7 | 0.75/1.5 | ||
YTD0015G2S2B/YTD0022P2S2B | ~220(Single phase) | 7/10 | 1.5/2.2 | ||
YTD0004G2T2B/YTD0007P2T2B | ~220(three-phase) | 2.3/4.5 | 0.4/0.75 | ||
YTD0007G2T2B/YTD0015P2T2B | ~220(three-phase) | 4.5/7 | 0.75/1.5 | ||
YTD0015G2T2B/YTD0022P2T2B | ~220(three-phase) | 7/10 | 1.5/2.2 | ||
YTD0004G4T2B/YTD0007P4T2B | ~380(three-phase) | 1.2/2.5 | 0.4/0.75 | ||
YTD0007G4T2B/YTD0015P4T2B | ~380(three-phase) | 2.5/4 | 0.75/1.5 | ||
YTD0015G4T2B/YTD0022P4T2B | ~380(three-phase) | 4/5 | 1.5/2.2 | ||
YTD0022G4T2B/YTD0037P4T2B | ~380(three-phase) | 5/9.0 | B3 | 2.2/3.7 | |
YTD0037G4T2B/YTD0055P4T2B | ~380(three-phase) | 9.0/13.0 | 3.7/5.5 | ||
YTD0055G4T2B/YTD0075P4T2B | ~380(three-phase) | 13.0/17.0 | 5.5/7.5 | ||
YTD0075G4T2B/YTD0110P4T2B | ~380(three-phase) | 17.0/25 | B4 | 7.5/11 | |
YTD0070G4T2C/YTD0110P4T2C | ~380(three-phase) | 25/32 | 11/15 | ||
YTD01100G4T2C/YTD0150P4T2C | ~380(three-phase) | 32/37 | C1 | 15/18.5 | |
YTD0150G4T2C/YTD0185P4T2C | ~380(three-phase) | 37/45 | 18.5/22 | ||
YTD0185G4T2C/YTD0220P4T2C | ~380(three-phase) | 45/60 | 22/30 | ||
YTD0220G4T2C/YTD0300P4T2C | ~380(three-phase) | 60/75 | C2 | 30/37 | Hang up of three-phase frequency converter(no built-in braking unit, no built-in DC reactor unit) |
YTD0300G4T2C/YTD0370P4T2C | ~380(three-phase) | 75/90 | 37/45 | ||
YTD0370G4T2C/YTD0450P4T2C | ~380(three-phase) | 90/110 | C3 | 45/55 | |
YTD0450G4T2C/YTD0500P4T2C | ~380(three-phase) | 110/150 | 55/75 | ||
YTD0550G4T2C/YTD0750P4T2C | ~380(three-phase) | 150/176 | C4 | 75/90 | |
YTD0750G4T2C/YTD0900P4T2C | ~380(three-phase) | 176/210 | 90/110 | ||
YTD0900G4T2C/YTD1100P4T2C | ~380(three-phase) | 210/250 | C5 | 110/132 | |
YTD1110G4T2C/YTD1320P4T2C | ~380(three-phase) | 250/300 | 132/160 | ||
YTD1320G4T2C/YTD1600P4T2C | ~380(three-phase) | 300/340 | C6 D1 | 160/185 | Three phase inverter cabinet machine(no built-in braking unit,With built-in DC reactor unit) |
YTD1600G4T2D/YTD1850P4T2D | ~380(three-phase) | 340/380 | 185/200 | ||
YTD1850G4T2D/YTD2000P4T2D | ~380(three-phase) | 380/415 | 200/220 | ||
YTD2000G4T2D/YTD2200P4T2D | ~380(three-phase) | 415/470 | C7 D2 | 220/250 | |
YTD2200G4T2D/YTD2500P4T2D | ~380(three-phase) | 470/520 | 250/280 | ||
YTD250G4T2D/YTD2800P4T2D | ~380(three-phase) | 520/580 | 280/315 | ||
YTD2800G4T2D/YTD3150P4T2D | ~380(three-phase) | 580/640 | D3 | 315/355 | |
YTD3150G4T2D/YTD3500P4T2D | ~380(three-phase) | 640/740 | 355/400 | ||
YTD3500G4T2D/YTD4000P4T2D | ~380(three-phase) | 740/860 | 400/500 | ||
YTD4000G4T2D/YTD5000P4T2D | ~380(three-phase) | 860/950 | D4 | 500/560 | |
YTD5000G4T2D/YTD5600P4T2D | ~380(three-phase) | 950/1100 | 560/600 | ||
YTD5600G4T2D/YTD6000P4T2D | ~380(three-phase) | 1100 | 630 |
