1、Overview:
This product is a special type of controller for rotary evaporator equipment,the system integrates brushless DC motor control, temperature control, lift control, pressure display, timing control and other common functions,The display part can be flexibly selected as LCD, dot matrix or touch screen according to customer requirements. It has the characteristics of compact structure, beautiful process, convenient installation and use, practical and flexible function, simple operation, high reliability, strong anti-interference ability and economic benefits.
2、Model description:
Main controller：YZW-XZ4-200A310L

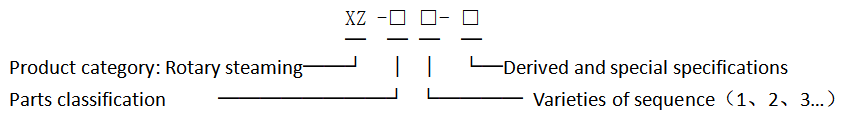

3、Naming rules of the type spectrum of external accessories:
①Rotary steam outer accessories：display operation board:
(1)Display operation board classification：XZ- C□□(Rotary steaming single operating plate)、XZ-X□□（Rotary steam single display board）、XZ-XC□□（Rotary steam display operation board）、XZ-XCM Touch screen.
(2)Variety breakdown:：
▲Simple operation,：XZ-CAJ:Single button operation board；XZ-CXN:Single knob (potentiometer/swivel) operating board, XZ-CAX: key + swivel operating board.
▲Single display board: XZ-XSM: digital display board; XZ-XYD: monochrome (black and white) LCD display board; XZ-XYC: color LCD display board, XZ-XDZ: dot matrix display board.
▲Operation display board: XZ-XCSM: digital display operation board; XZ-XCYD: monochrome (black and white) LCD display operating board; XZ-XCYC: color LCD display operating board; XZ-XCDZ: dot matrix screen operation board; Xz-XCMP: touchscreen
A、XZ-XCSM1/XCYD1/XCYC1/XCDZ1 It is a display operation board with keys arranged in horizontal rows; XZ-XCMP1 Vertical touch screen
B、XZ-XCYD2/XCYC2/XCDZ2 The display operation board with diamond arrangement of keys; XZ-XCMP2 Horizontal touch screen
C、XZ-XCYD3/XCYC3/XCDZ3 The display operation board with diamond arrangement of keys;
②Relay board of rotary steaming products
⑴Parts classification： XZ-BJ(Passive relay board)、XZ-BJS（Active relay board）
(2)Varieties of sequence：XZ-BJ1：BP8.065.610-1、XZ-BJS1: BP8.065.610
③Brushless DC motor for rotary steam：XZ-M80BLDC110(80End body 110mm specifications)
